Tractor
Fendt 500 Vario Gen4
513144 HP
514154 HP
515164 HP
516174 HP
When the new generation was just waiting for it
You've chosen a profession that's more than just a job, it's a vocation. You work heart and soul in harmony with nature. For this, you need technology you can rely on at all times. Equipped with the revolutionary VarioDrive transmission, Fendt DynamicPerformance for extra intelligent power, and the intuitive FendtONE environment, you work efficiently and comfortably, and are ready for the future. With the Fendt 500 Vario Gen4, you're ready for the challenges ahead.
- COVER: 3 years/3000 hours with full protection and 0$ excess
- MAINTENANCE: All recommended maintenance included
- SERVICE: Performed by AGCO-certified technicians using genuine parts
- AVAILABILITY: Machine loan guarantee if the tractor is not repaired within 48 hours.

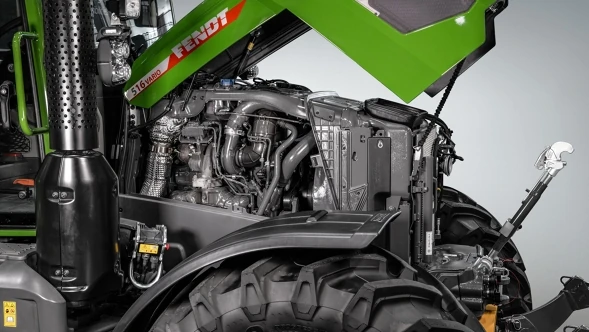

AGCO Power CORE50
The engine AGCO Power CORE50 sets a new benchmark with the Fendt iD at low revs, with outstanding efficiency and optimized fuel consumption. With a displacement of 5.0 L 4-cylinder, It delivers significant power reserves while reducing fuel consumption, as confirmed by independent DLG tests.
Its extended operating range, from 800 to 1,900 rpm, This ensures quiet, smooth and economical operation. The maintenance-free hydraulic tappets reduce vibration and maintenance requirements, making this motor an ideal choice for demanding daily use.

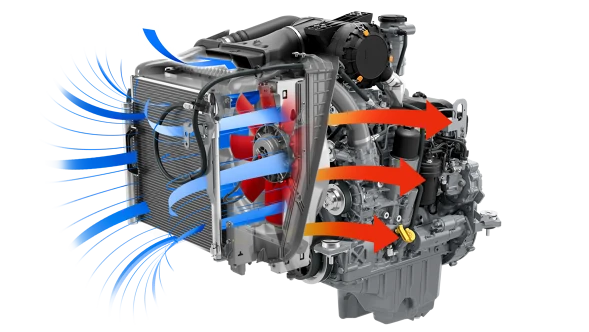

Efficient radiator cleaning
When working with large quantities of dust, the reversible-blade fan option ensures fast, efficient cleaning of air inlets. Hydraulically operated, it briefly reverses the air flow to remove deposits from the calender, without interrupting work.
The function can be activated manually or automatically, This ensures constant air flow and optimum cooling capacity. It thus contributes to reduced fuel consumption and maintenance time, even under demanding conditions.
Combined with the Fendt iD at low revs, This solution improves overall machine efficiency and reliability.
VarioDrive transmission - Intelligence and performance
Transmission Fendt VarioDrive offers continuous driving over a single speed range, from 0.02 at 50 km/h, with independent, variable all-wheel drive. Thanks to the pull-in turn, the turning radius is reduced by up to 10 %, This makes maneuvering easier and protects the ground.
The technology Fendt Torque Distribution intelligently distributes torque to the axle offering the best grip, ensuring optimum traction and limiting slippage. This design improves overall efficiency, reduces mechanical wear and protects the topsoil.
Finally, the transmission oil change interval is extended to 4,000 hours or 4 years, significantly reducing maintenance costs.

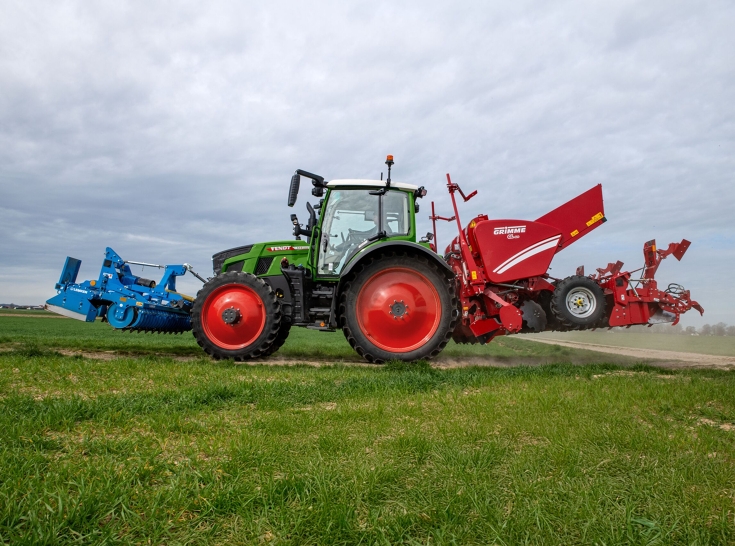

One tractor. Countless possibilities. Maximum hydraulic power.
Visit Fendt 500 Vario Gen 4 is distinguished by its versatility, efficiency and top-of-the-range comfort, perfectly suited to modern farms. Equipped with the AGCO Power CORE50 and concept Fendt iD at low revs, It delivers excellent power while reducing fuel consumption.
Its transmission VarioDrive ensures a smooth ride, optimum traction and great maneuverability, even in demanding conditions. The cab FendtONE offers an intuitive, ergonomic and connected working environment.
Reliable, economical and high-performance, the Fendt 500 Gen 4 is designed to excel on a daily basis, both in the field and on the road.
With flow rates of up to 109 or 152 l/min, the Fendt 500 Vario provides the hydraulic capacity needed for demanding applications, with efficiency, precision and reliability. The load-sensing pump ensures fast, customized oil supply and maximum precision. Up to five distibutors are available at the rear, a maximum of two at the front and two or three additional ones linked to the multicoupler, ideal for use with front loaders, front/rear mower units, tedders, windrowers, seed drills and many other implements.
The Fendt 500 Vario Gen4 can also be fitted with Power Beyond couplings, which enable particularly precise control of hydraulic functions with low losses. The implement is only supplied with oil when it actually needs hydraulic power. FFC couplers with flat faces can be used as an option. Whether for haymaking, cereal crops or specialty crops, the Fendt 500 Vario Gen4 easily adapts to a wide range of applications.
Always in the right rpm range
The standard four-speed PTO (540/540E/1000/1000E rpm) ensures particularly efficient operation. With four selectable speeds, the PTO can always be operated in the optimum power range. This not only increases productivity, but also considerably reduces fuel consumption. Electro-hydraulic preselection and ECO modes ensure particularly efficient operation, combined with the high operating comfort of the FendtONE control concept. Additional control buttons on both rear fenders facilitate operation outside the tractor cab, saving travel time and increasing profitability in daily use.
Automatic steering axle lock
Automatic locking of the steering axle ensures precise, safe driving without manual intervention. The steering axle is active within a defined speed range up to a maximum of 25 km/h, making the hitch more maneuverable and minimizing tire wear. If the set maximum speed is exceeded, the tag axle is automatically locked to ensure stable driving behaviour under acceleration. Even when reversing, the axle locks automatically to allow manoeuvring. The driver's workload is significantly reduced, and safety is also enhanced.
Additional deceleration force without wear
The hydraulic auxiliary brake on the Fendt 500 Vario Gen4 uses the existing hydraulic circuit to produce an additional braking effect during deceleration or descent, without any mechanical wear. It can be comfortably activated using the dedicated foot pedal or an assigned button. This is an undeniable plus in terms of safety, especially when towing heavy loads. At the same time, the brakes are spared, reducing long-term maintenance costs. As a result, the tractor remains safe and controllable at all times, even during demanding transport tasks.
Trailer braking assistance: downhill assistance
The Trailer Brake Assist (TBA) stabilizes the tractor plus trailer or implements coupling by means of pneumatic braking, in critical situations. The TBA constantly monitors the thrust of the trailer or implement on the tractor, and automatically manages the application of braking pressure without the need to depress the brake pedal. The TBA is activated only when necessary, at speeds of up to 25 km/h, providing additional safety while protecting the field or the topsoil. It is not a downhill assistance system like the retarder on a truck, and does not replace a retarder. Overall, the TBA ensures safe, relaxed driving with a trailer.
